Mercedes-Benz CLA C117 Multifunction steering wheel buttons replacement (2013 - 2019)
Direct OEM fit — no cutting
Free US shipping
1-year warranty
30-day easy returns

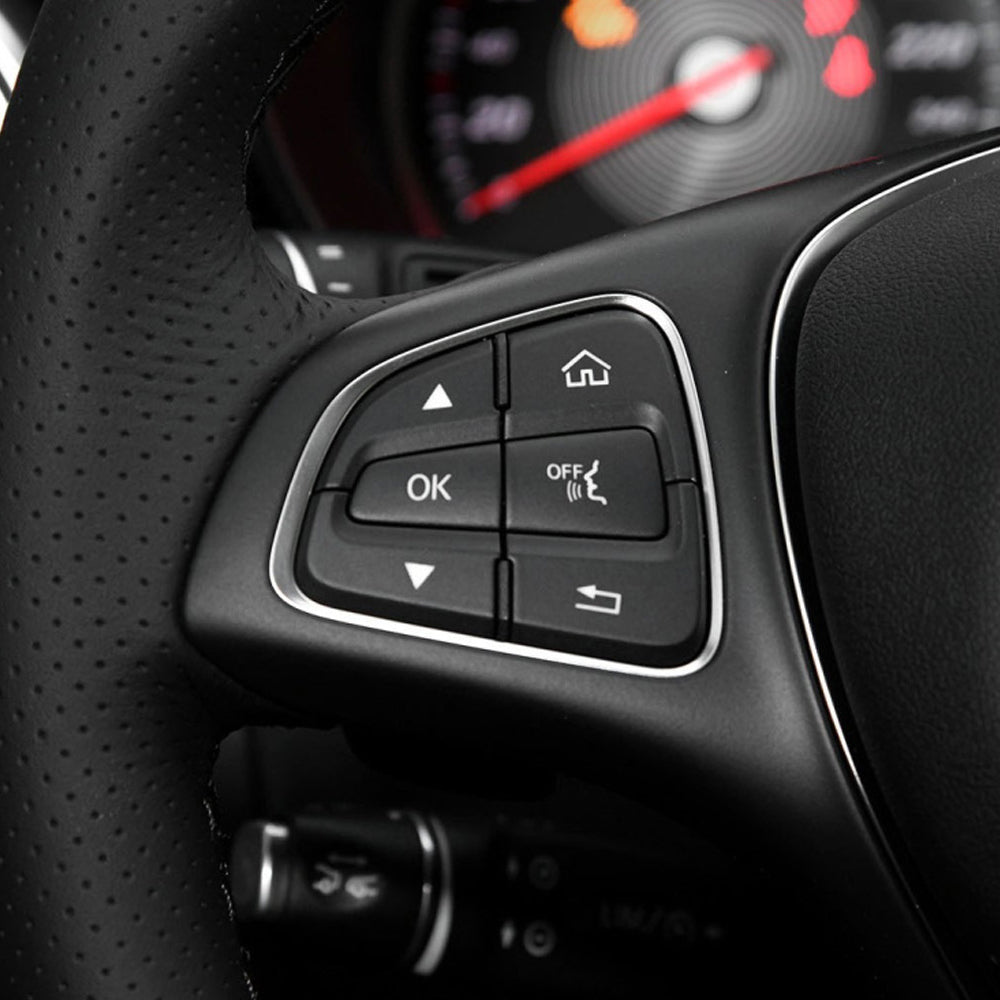

Replace worn, scratched, or unresponsive steering wheel buttons on your Mercedes-Benz CLA C117 with this brand-new multifunction button replacement set. Designed to meet original factory specifications, these buttons restore both full functionality and the original premium look of your steering wheel, ensuring a consistent and refined interior appearance.
Ideal for interior refurbishment or repair, this replacement kit allows you to regain precise control over key vehicle functions while preserving the distinctive Mercedes-Benz design language of the CLA.

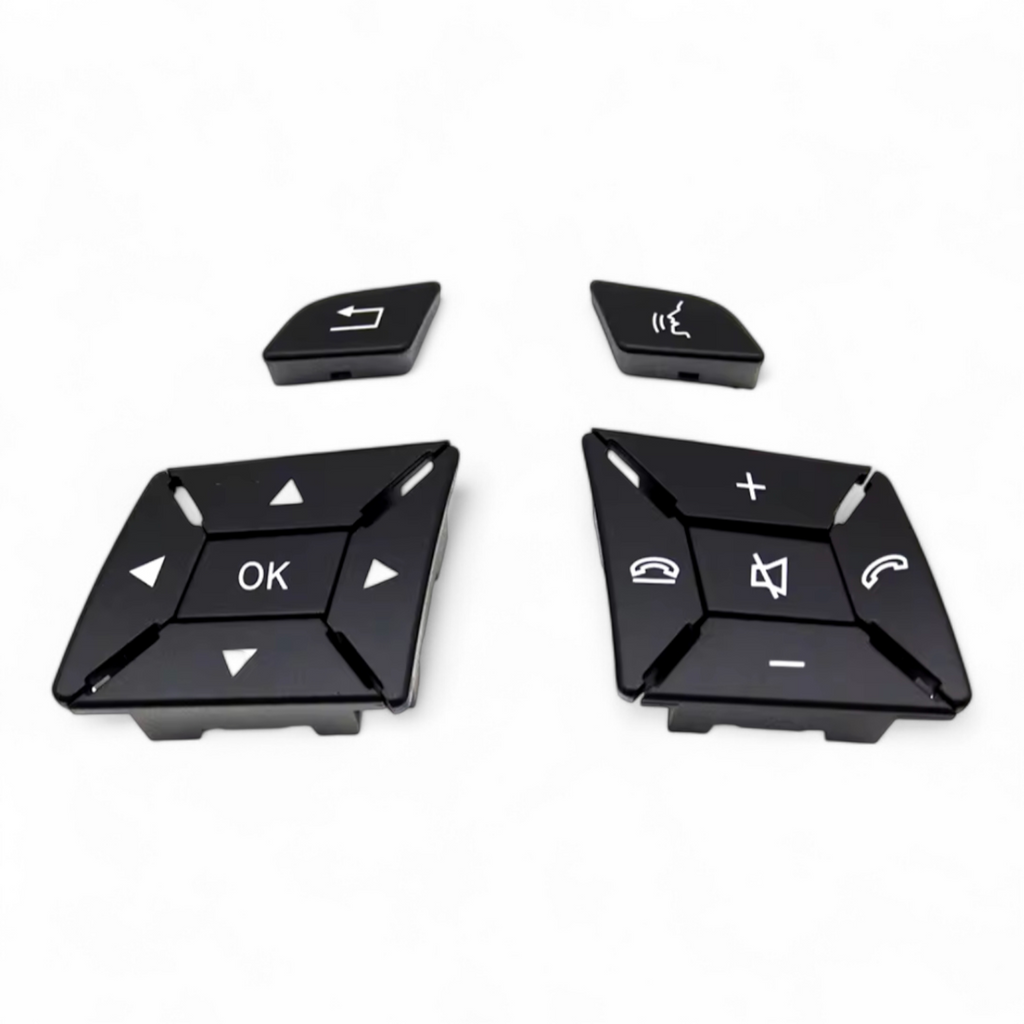

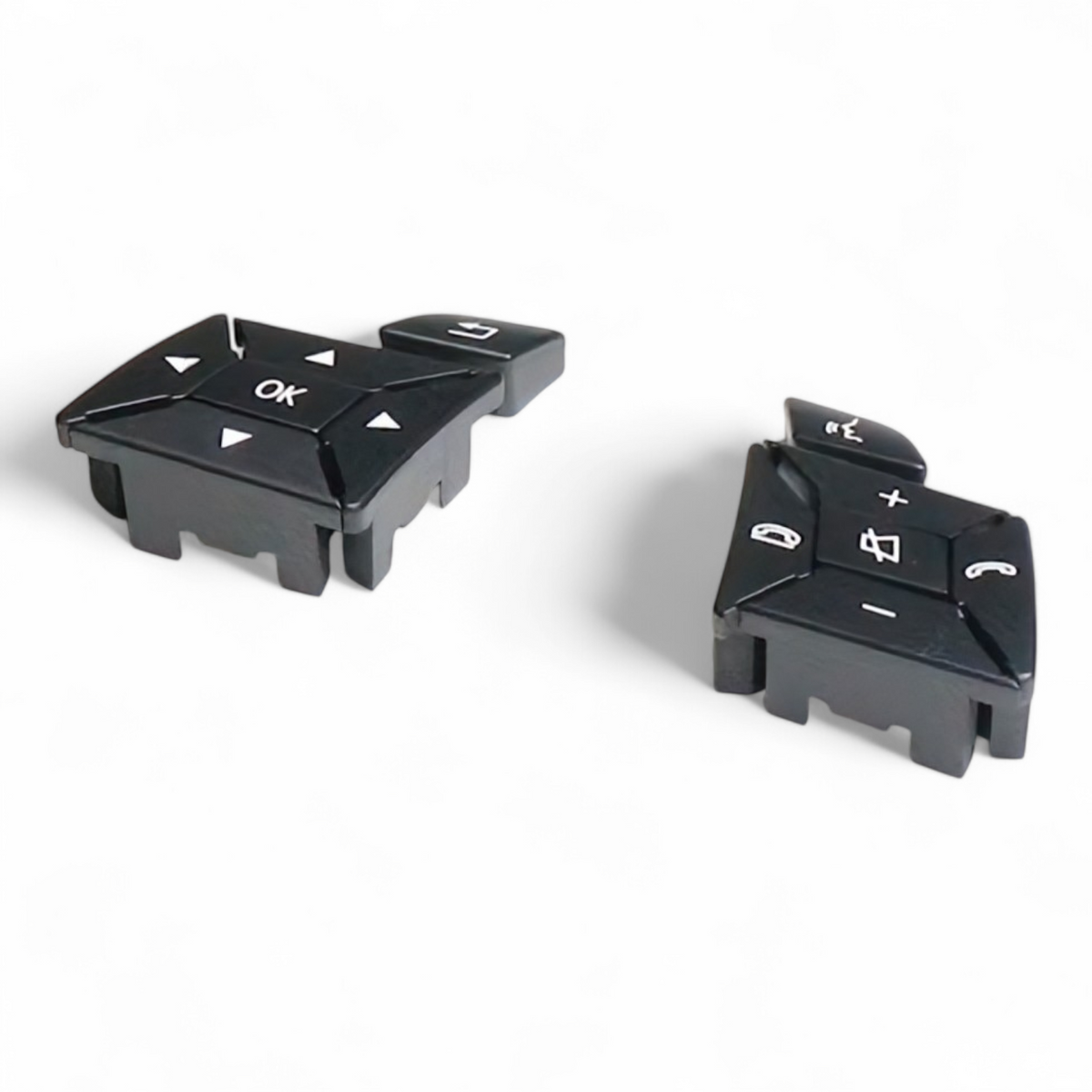

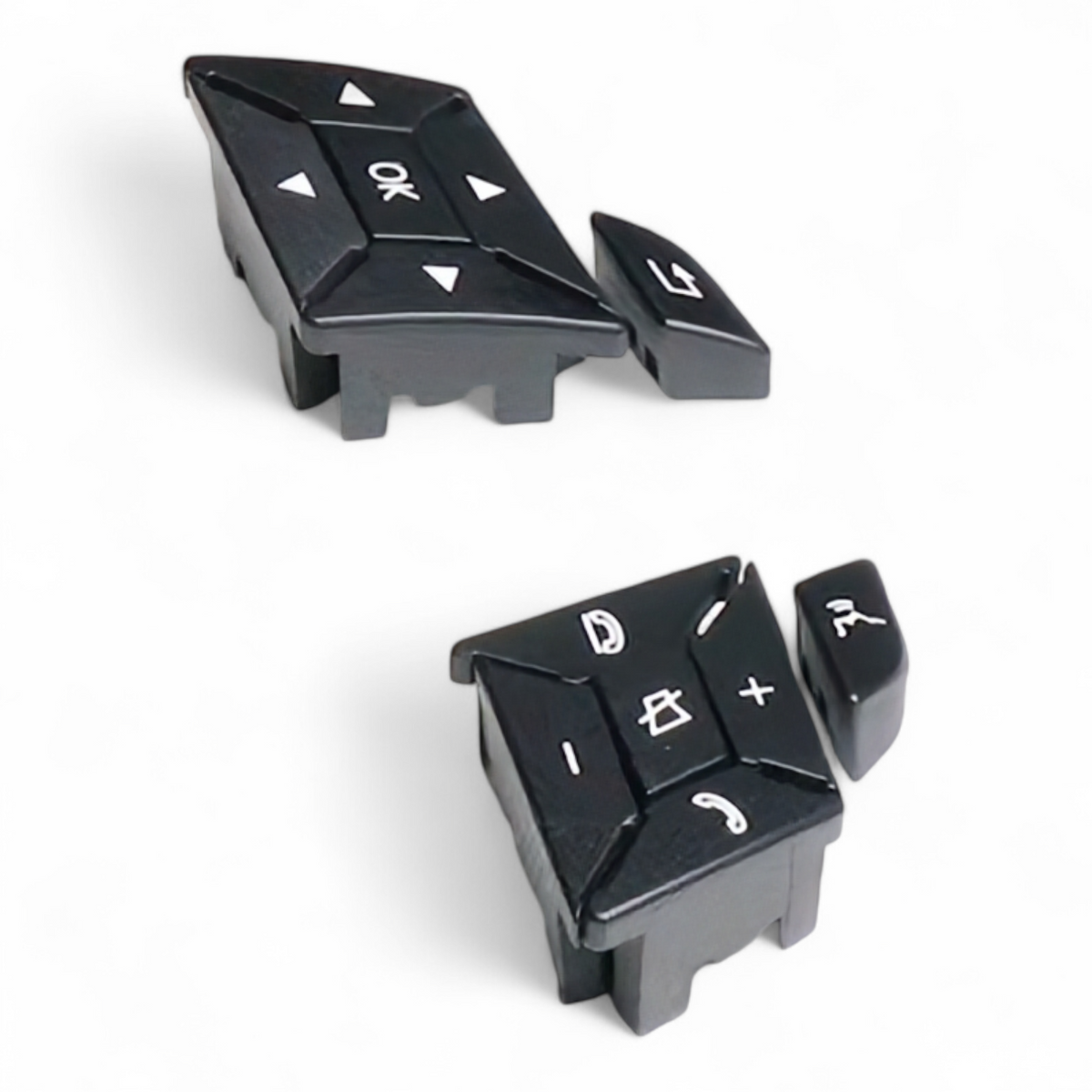

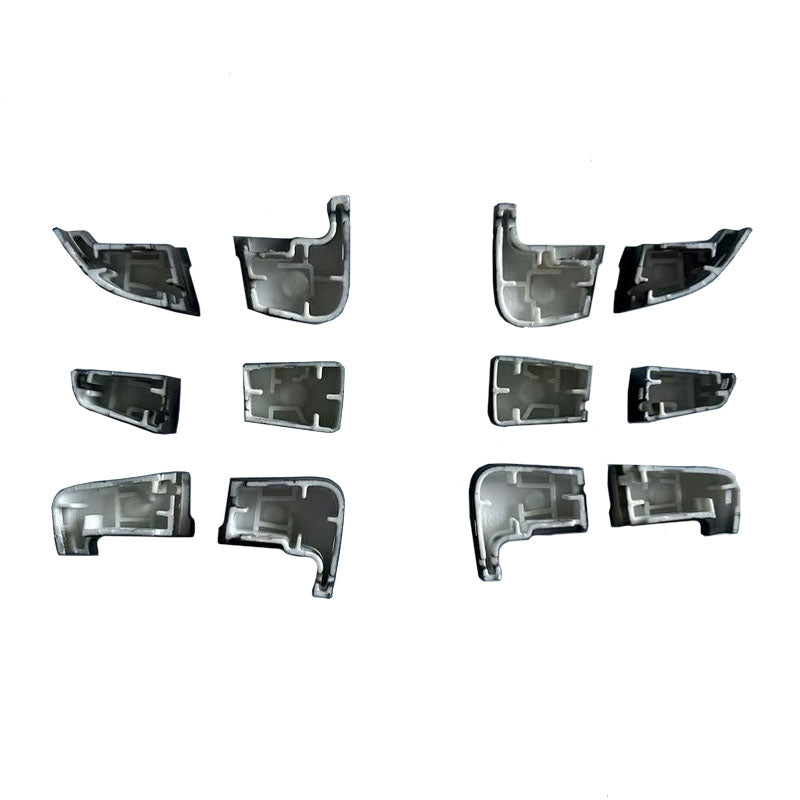

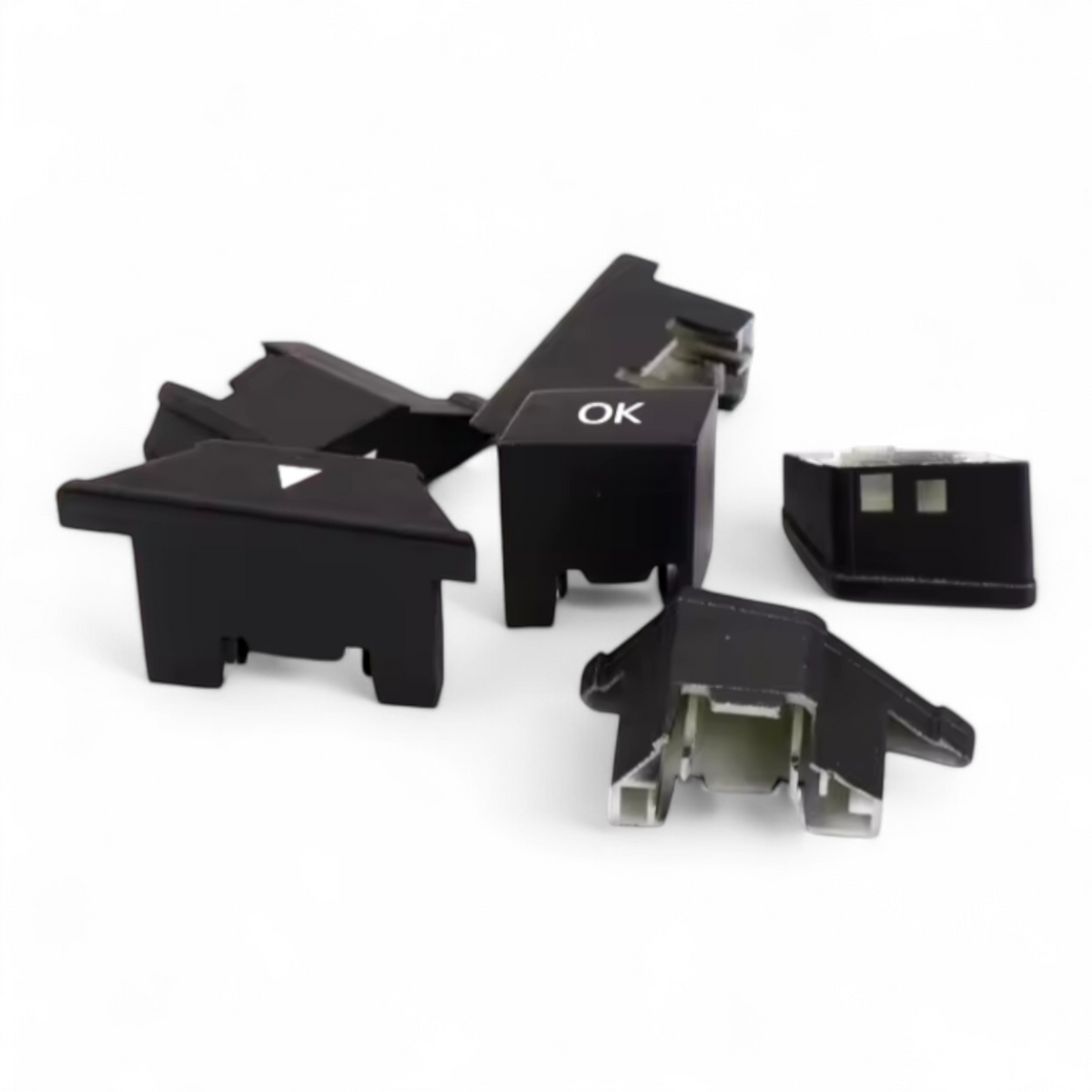

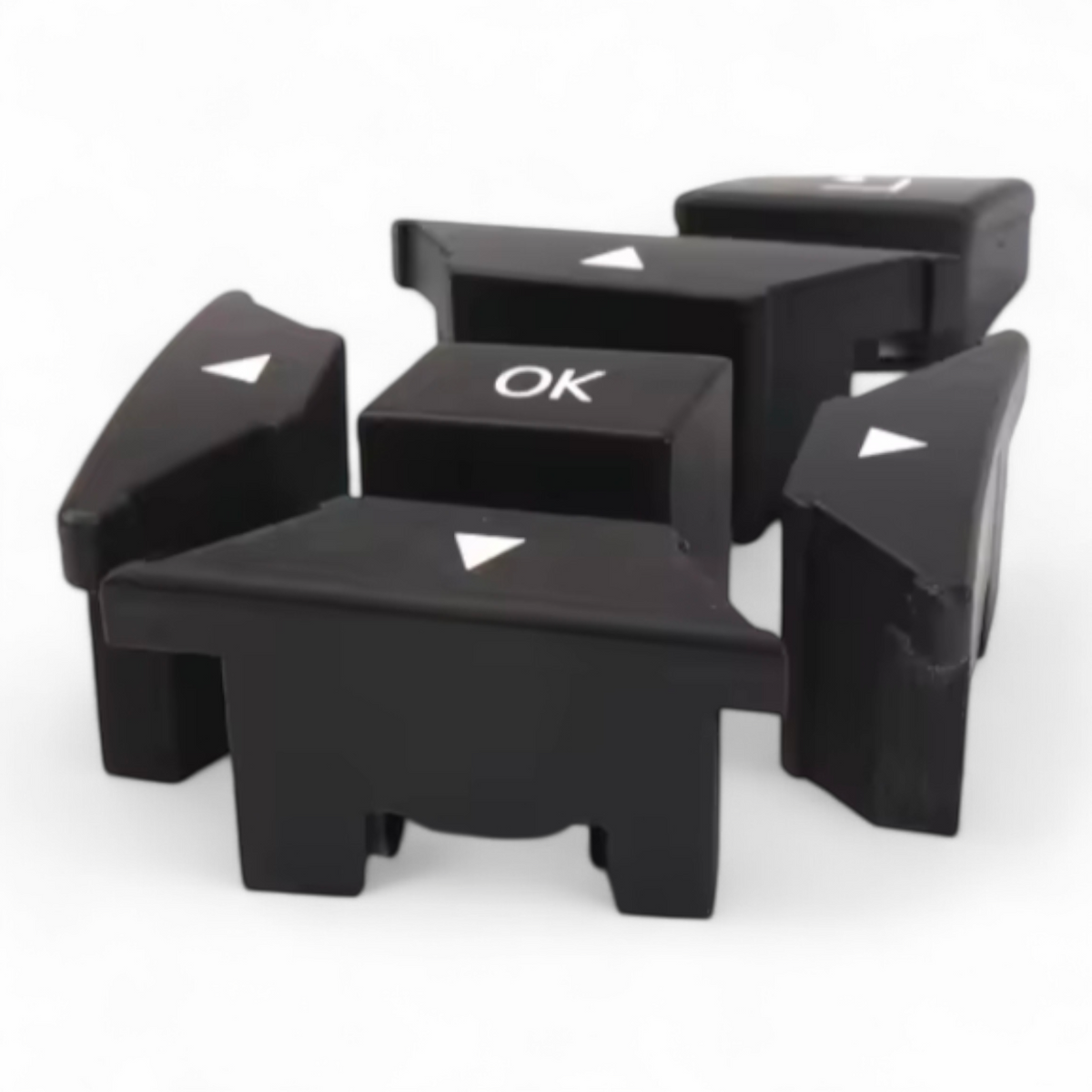

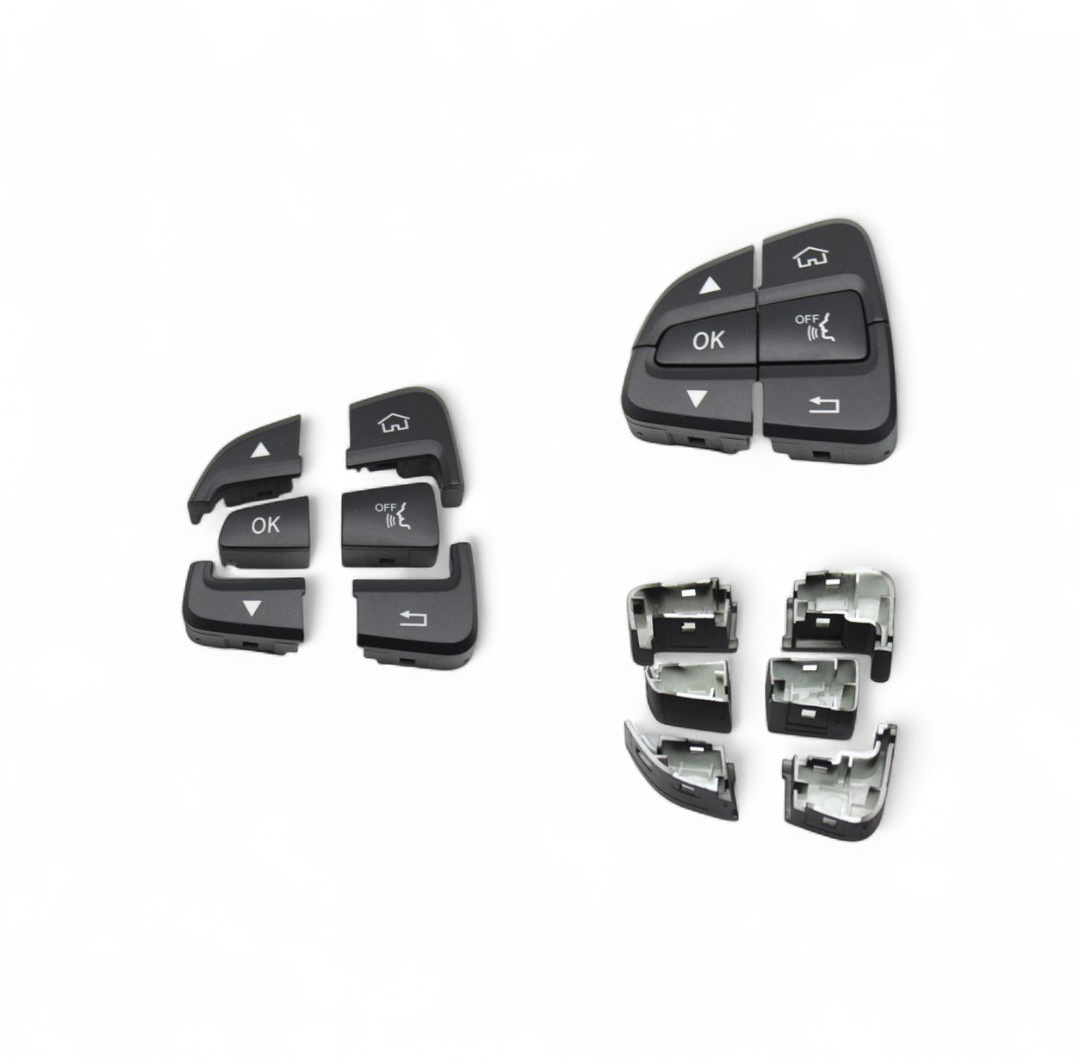

This replacement kit includes a complete set of 12 multifunction steering wheel buttons, covering all standard steering wheel controls:

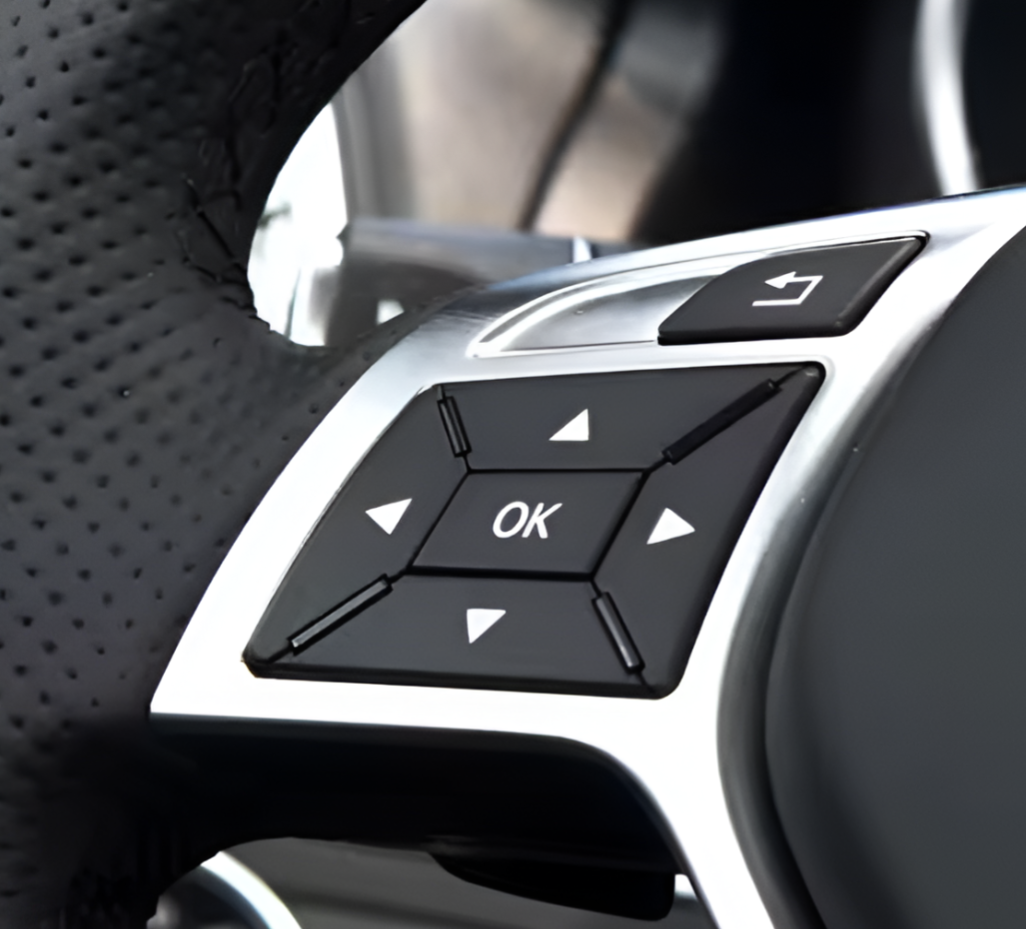

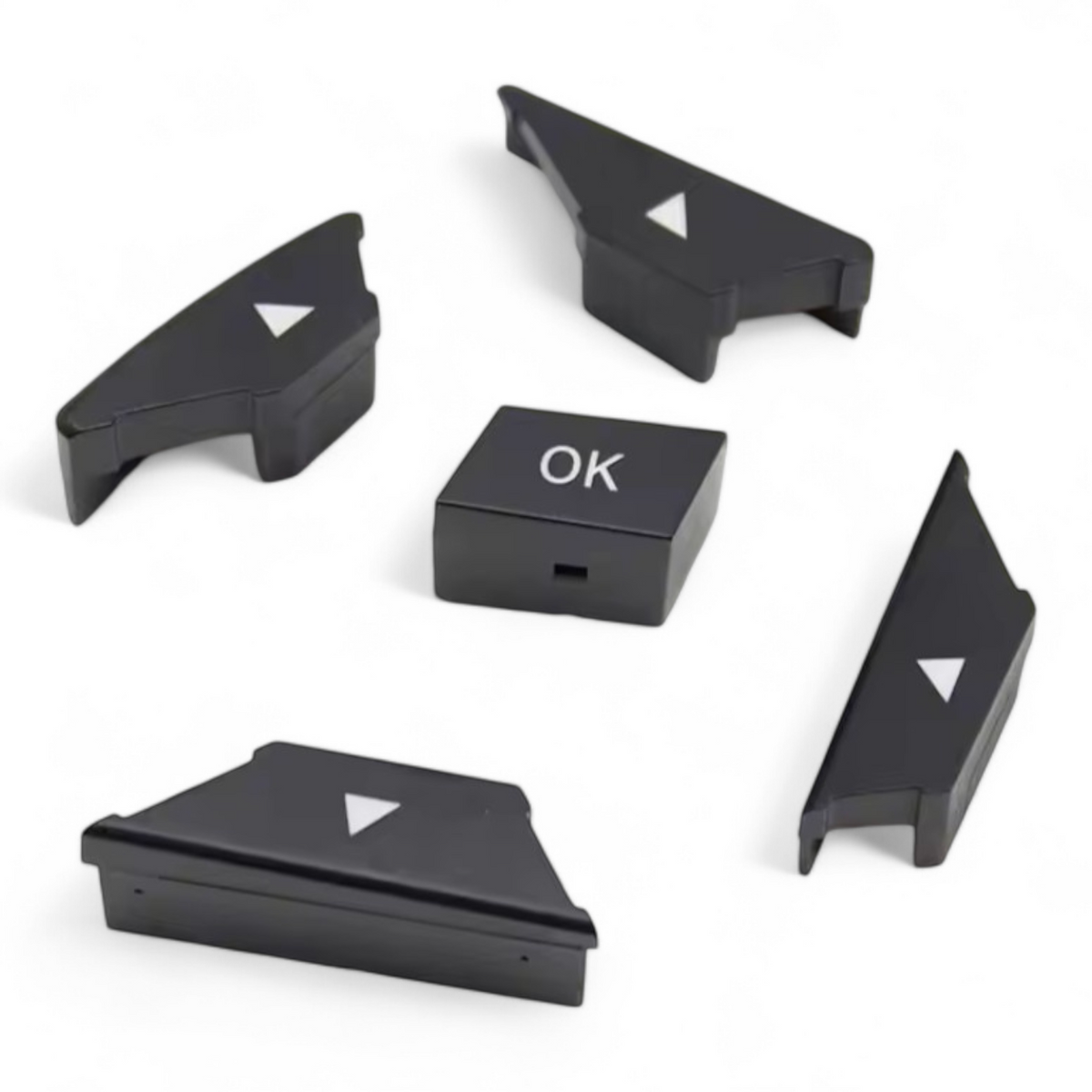

- Directional arrows (Up, Down, Left, Right) and OK button
- Return / Back button

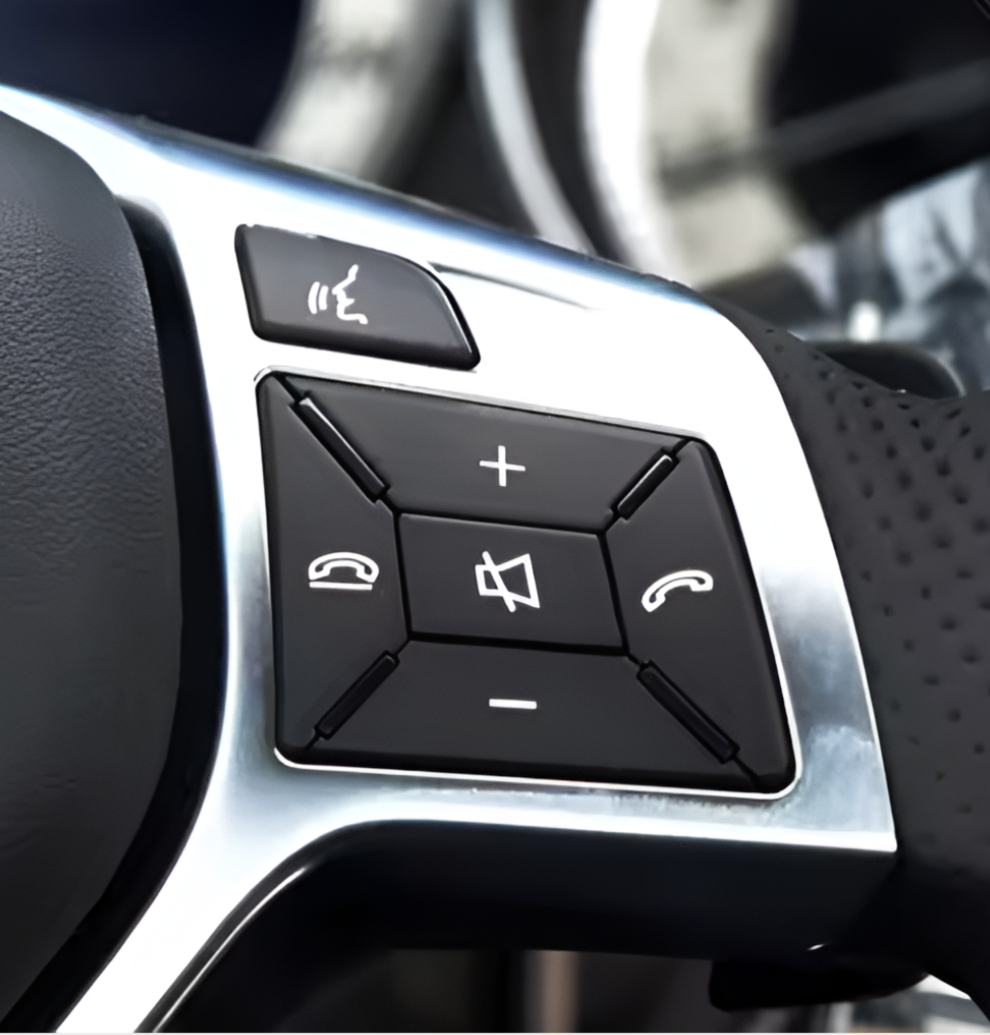

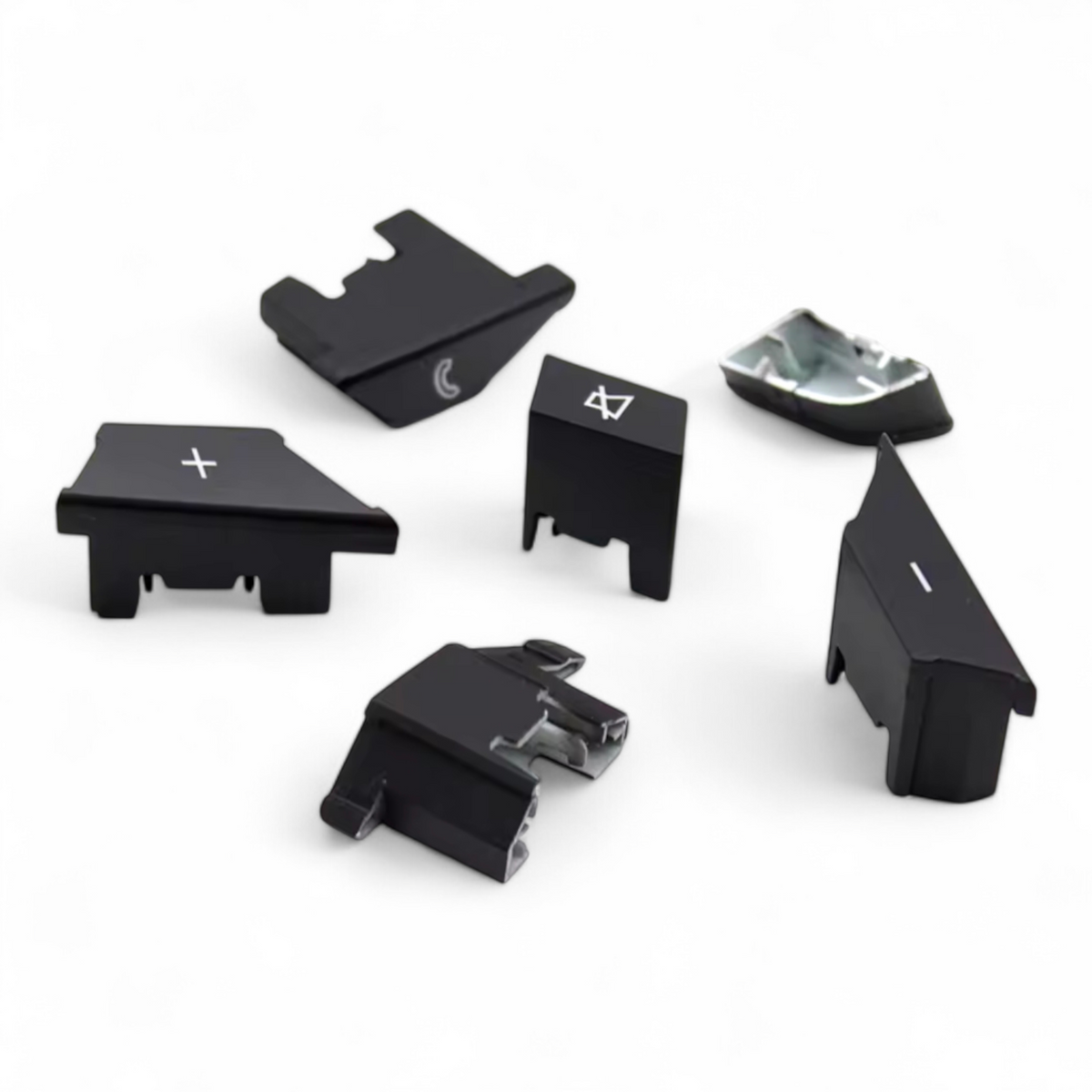

- Volume + and Volume –
- Mute function
- Call pick-up and hang-up buttons
- Voice control button
Each button is clearly labeled and engineered to provide accurate, responsive feedback during everyday driving.
Specifically engineered for the CLA C117 steering wheel, these buttons fit precisely into the original housings. The color, texture, icons, and tactile response closely match the factory-installed components, ensuring a seamless installation with no visible difference from OEM parts once fitted.
Manufactured from high-quality ABS plastic, these buttons are designed to resist wear, fading, and frequent use. They maintain their appearance and functionality over time, making them a reliable long-term solution for restoring your steering wheel controls.
What you'll need: T20 Torx screwdriver, thin Torx-style tool (for the airbag springs), small tray or cup for screws.
1. Safety first: Disconnect your battery before touching anything on the steering wheel. Wait at least 1 minute after disconnecting to let the airbag system fully discharge.
2. Find the airbag access holes
On the back of the steering wheel, look for the access holes at roughly the 4:40 position (these are not the holes sitting directly behind the buttons, we will get to them later). Insert your thin tool and angle it until you feel the spring.
Once you feel the spring, push it in. The airbag releases on that side. Do the same on the other side and the airbag pops right out.
3. Unplug and set the airbag aside
Pull the connector clip to unplug the airbag from its harness. Set it face-up on a flat, stable surface. Never lay an airbag face-down or leave it somewhere it could fall.
4. Remove the surround trim panel
Use your T20 to remove the 2 screws on the surround trim panel surrounding the airbag cover (one left and one right).
There's also 2 screws on the back of the wheel — get these ones out too before pulling the trim off.
5. Unscrew the switch panel
Remove the 3 T20 screws that hold the switch panel in place.
6. Take apart the button panel
Pull the panel out and flip it over. You'll see a side clip. Remove it using a flat screwdriver.
Then, using a flat screwdriver again, unclip the buttons from the front.
The central and top buttons hold on to one more clip that you will have to undo.
7. Reassemble in reverse order
Put the new buttons onto the switch panel by simply pressing them in with your fingers.
Reassemble the buttons switch panel back on its module. You should hear a "click". Then tighten the 3 screws holding it in place on the steering wheel.
Then the surround trim (2 front screws and 2 back screw):
Plug the airbag back in, align it with the pointy end facing up, and press it in until it clicks.
8. Reconnect your battery
Plug the battery back in. Turn the wheel all the way left then all the way right to reset the system, then test your steering wheel buttons to confirm everything works.
Compatible with Mercedes-Benz CLA C117 models from 2013 to 2019, equipped with a multifunction steering wheel.
Please verify your steering wheel button layout before ordering to ensure compatibility.
Avoid costly dealership repairs by choosing this high-quality replacement solution. Enjoy OEM-level fit, appearance, and functionality at a more accessible price point.
This product includes free shipping and is covered by a 1-year warranty, providing confidence and peace of mind with your purchase.
